商品の詳細:
|
|
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Sanxin |
| 証明: | ISO |
| モデル番号: | SX1300 |
|
お支払配送条件:
|
|
| 最小注文数量: | 2 |
| 受渡し時間: | 5-30DAYS |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
|
詳細情報 |
|||
| 高硬度: | HRA92 | カテゴリー: | 超硬加工 |
|---|---|---|---|
| カスタマイズオプション: | カスタム形状、サイズ、グレードも利用可能 | 化学的不活性性: | 高い |
| 弾性率: | 530～700GPa | 許容範囲: | ±0.001 mm |
| サービス: | OEMおよびODM | 超硬加工: | 高い耐久性 |
| 圧縮強度: | ≥5000MPa | 業種: | 製造者 |
製品の説明

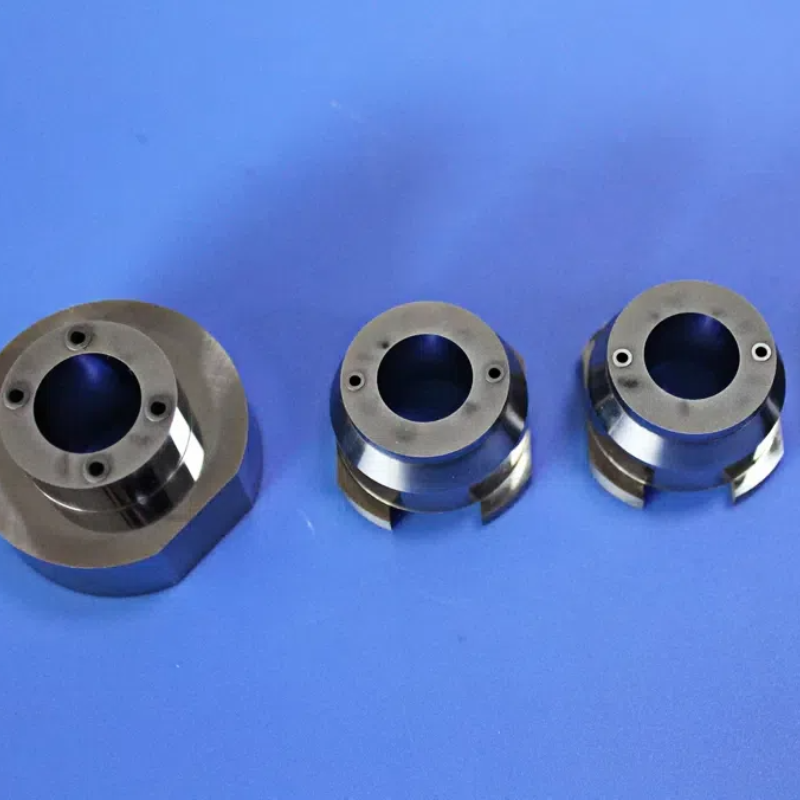

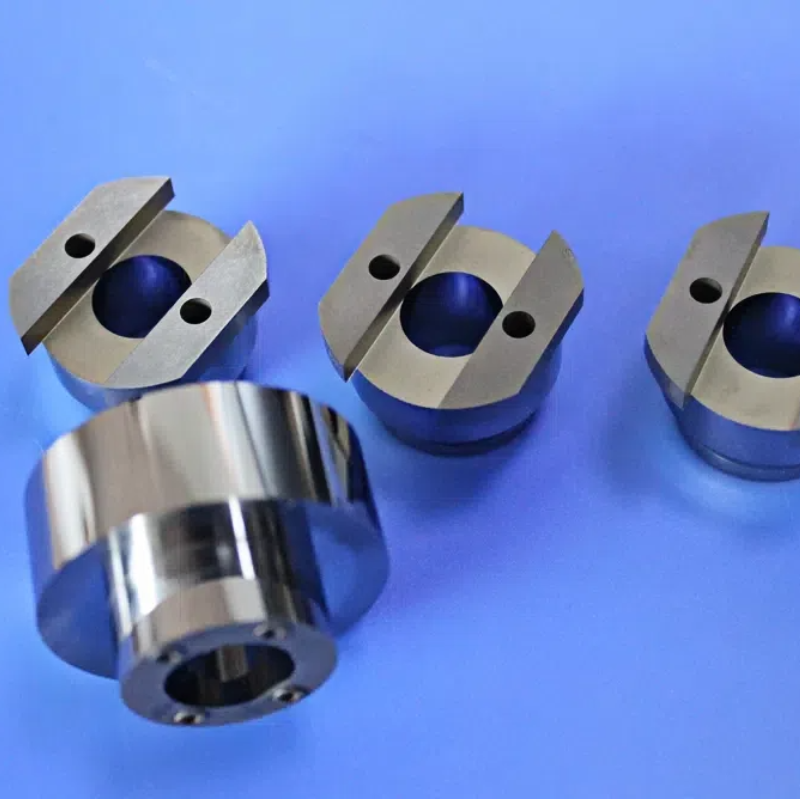

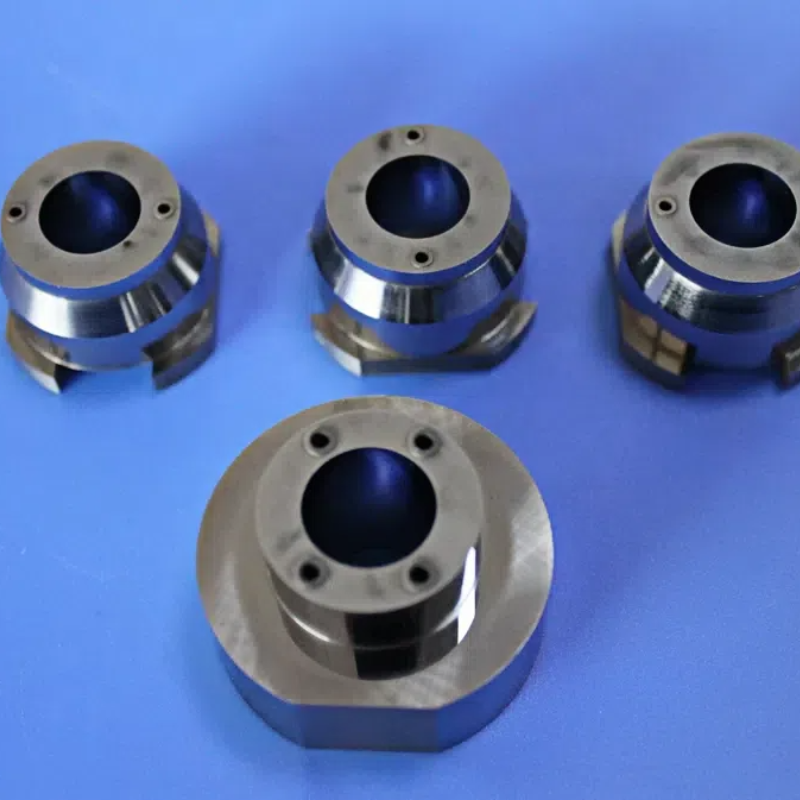

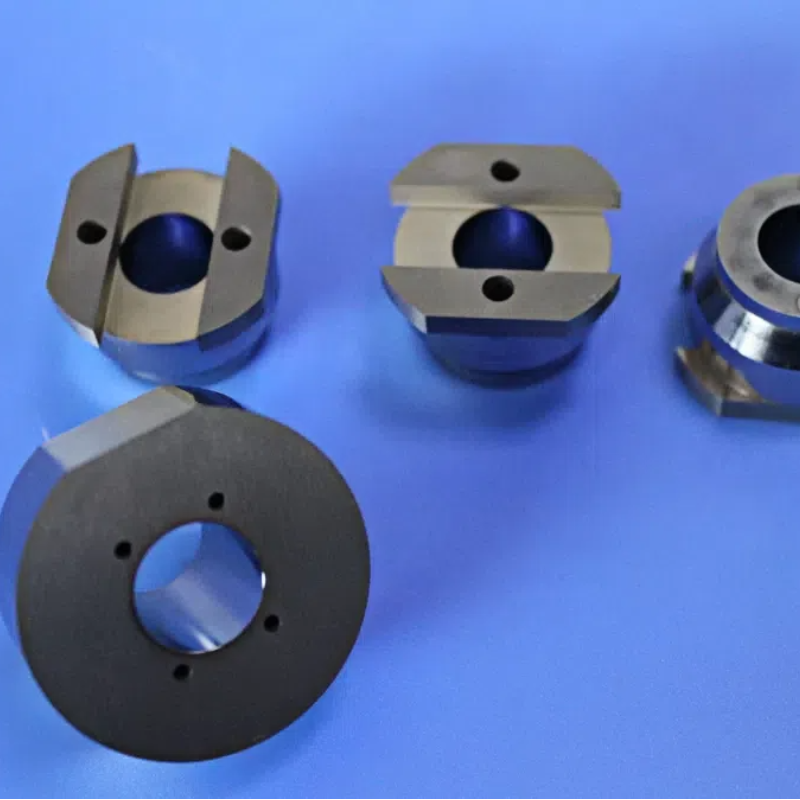

Our Non-Magnetic Tungsten Carbide Precision Hole Bases are engineered to serve as the ideal foundation for demanding applications. Manufactured from specialized WC-Ni (Tungsten Carbide-Nickel) alloy, these precision components deliver the essential combination of absolute magnetic neutrality, exceptional dimensional stability, and superior wear resistance for applications where standard steel or cobalt-bonded carbide cannot be used.
| Property | Typical Value | Benefit |
|---|---|---|
| Hardness | 90 - 92 HRA | Resists wear and deformation over millions of cycles |
| Density | 14.8 - 15.0 g/cm³ | High rigidity, excellent vibration damping |
| Thermal Expansion | 5.5 × 10⁻⁶ /K | Maintains precision across temperature variations |
| Compressive Strength | > 4000 MPa | Withstands high clamping forces without deformation |
Our manufacturing capabilities achieve exceptional accuracy for critical hole features:
| Industry | Application | Why Choose Our Hole Base |
|---|---|---|
| Semiconductor Manufacturing | Wafer stage mounting, mask aligner bases, metrology equipment fixtures | Zero magnetic interference with electron beams, wear-free precision over millions of cycles |
| Medical Imaging (MRI) | RF coil mounts, patient positioning system bases | Absolute non-magnetic property ensures image fidelity and patient safety |
| Aerospace & Defense | Guidance system component mounts, inertial navigation bases | Non-magnetic signature, exceptional stability under vibration and temperature variation |
| Precision Metrology | CMM fixture bases, laser interferometer mounts | Thermal stability maintains calibration accuracy |
| Scientific Research | Electron microscope stages, particle detector mounts | No magnetic field distortion, ultra-high vacuum compatible |
| Automated Assembly | Precision fixture bases, robotic end-effector mounts | Long-term accuracy without wear-induced drift |
