商品の詳細:
|
|
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Sanxin |
| 証明: | ISO9001 |
| モデル番号: | SX-2272 |
|
お支払配送条件:
|
|
| 最小注文数量: | 1PC |
| 価格: | 交渉可能 |
| 支払条件: | LC、T/T |
| 供給の能力: | 10000個/月 |
|
詳細情報 |
|||
| 磨き率: | 0.1mm3/MJ未満 | 特徴: | 優れた 耐磨 耐腐蝕性 |
|---|---|---|---|
| カスタム 形状: | リクエストに応じて利用可能 | 特徴: | 耐久性が向上する |
| 耐衝撃性: | 素晴らしい | 磁気特性: | 磁性でないもの |
| 融点: | 2870°C | 抗張力: | 1,900MPa |
| 超硬加工: | 高い耐久性 | 合金の指定: | yg6/yg8/yg10x/yg20c |
製品の説明

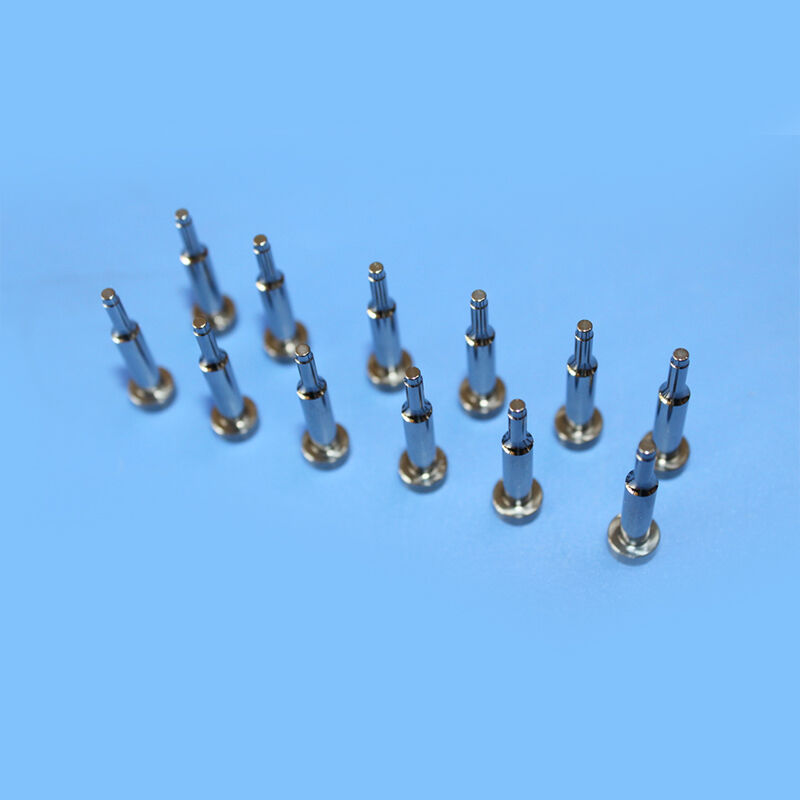

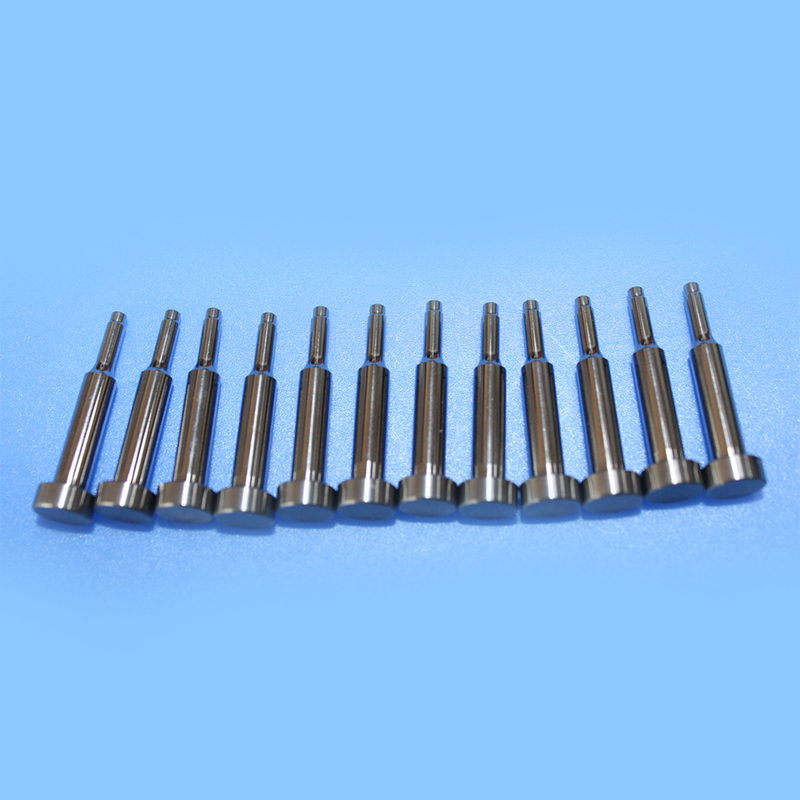

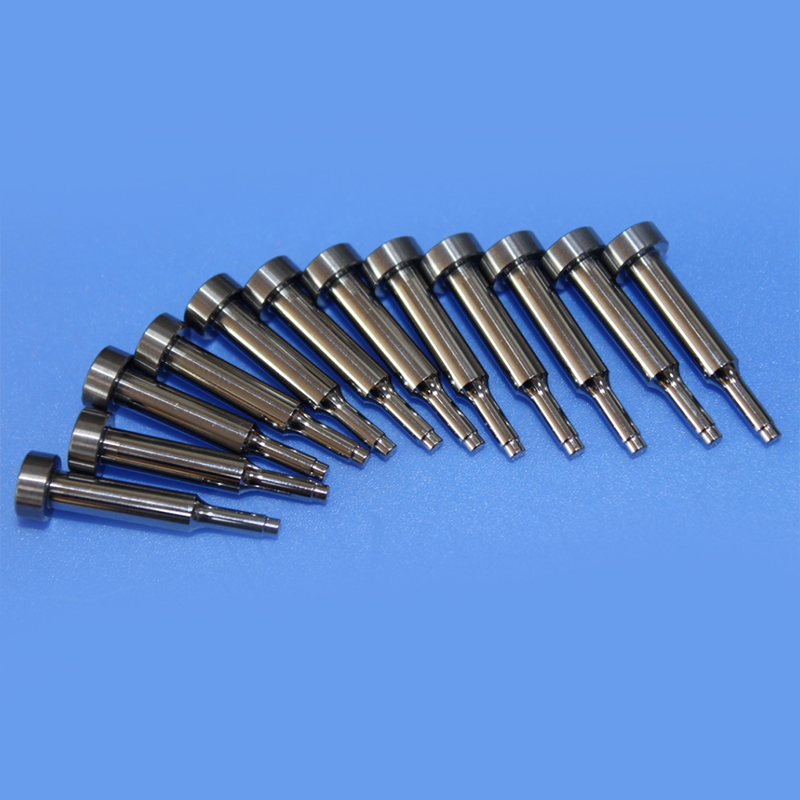

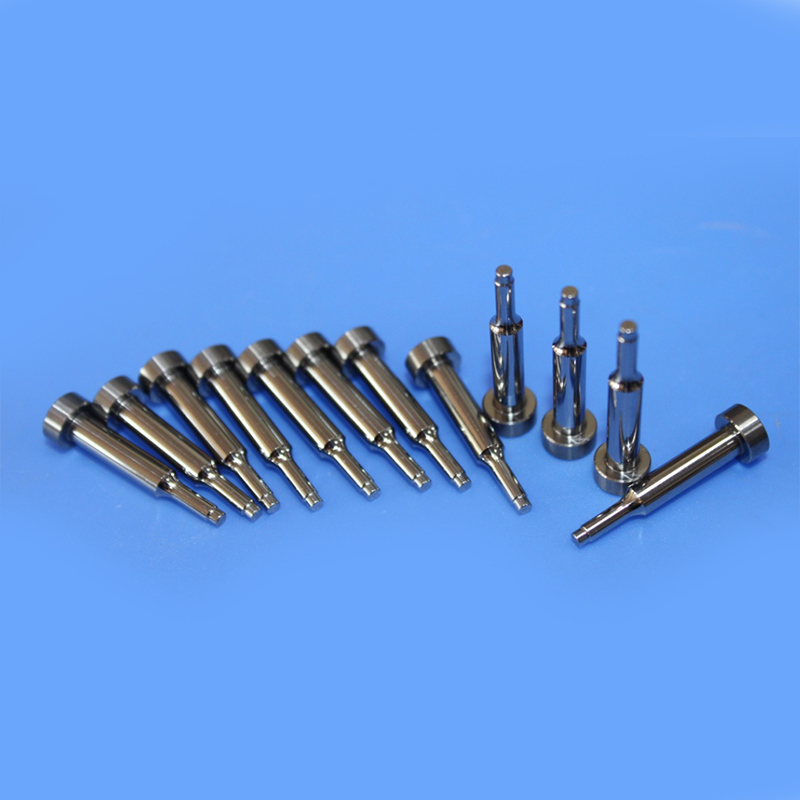

This tungsten carbide (cemented carbide) micro precision punch features a body diameter of Φ 1.95 mm and tip radius of R0.2 mm. Designed for micro-hole blanking, precision step forming, and high-speed punching applications, it is ideal for progressive dies, high-speed stamping dies, and powder metallurgy molding tools requiring long service life and strict dimensional consistency.
Manufactured from ultra-fine grain tungsten carbide (WC grain size ≤ 0.5 μm) with 6%-10% cobalt binder. This material combination delivers high hardness (≥ 90.5 HRA) and high transverse rupture strength (≥ 3000 MPa). Compared to conventional high-speed steel punches (M2, ASP23), service life is 5-10 times longer, particularly when punching hard materials like stainless steel, silicon steel, and copper alloys.
| Industry | Specific Use |
|---|---|
| Electronic connectors | Terminal holes, guide pin holes |
| Precision stamping | Stainless steel shims, springs, lead frames |
| Powder metallurgy | Micro steps, bumps, cavity details |
| Medical devices | Micro-hole punching, guide tube forming |
| Automotive parts | Injector shims, sensor housing micro-holes |
| Parameter Category | Item | Standard / Range | Tolerance / Remark |
|---|---|---|---|
| Dimensional | Body diameter D | Φ1.95 mm | ±0.002 mm (±0.001 mm achievable) |
| Tip radius R | R0.2 mm | ±0.005 mm | |
| Overall length L | 30 - 80 mm (custom) | ±0.05 mm | |
| Entry chamfer (optional) | C0.1 - C0.3 | tip or back end | |
| Shank diameter (if shouldered) | per drawing, typical Φ3.0 / Φ4.0 | ±0.005 mm | |
| Material | Grade | YG6 / YG8 / YG10X / ultra-fine | selected for wear or toughness |
| WC grain size | 0.4 - 0.8 μm | ultra-fine grade | |
| Cobalt content | 6% / 8% / 10% | higher = tougher |
| Parameter | Tungsten Carbide Punch | HSS Punch (M2 / ASP23) | Carbide + Coated Punch |
|---|---|---|---|
| Hardness (HRA / HRC) | 90.5 HRA (~74 HRC) | 62-66 HRC | 90 HRA + coating |
| TRS (MPa) | 3000 - 3800 | 3500 - 4500 (tougher) | 2800 - 3500 |
| Wear resistance | ★★★★★ | ★★★ | ★★★★★ |
| Chipping resistance | ★★★★ (due to R0.2) | ★★★★★ | ★★★☆ |
| Suitable stamping speed | High speed (800+ spm) | Medium-high speed | High speed |
| Life vs. M2 | 5 - 10× | 1× | 6 - 12× |
| Relative cost | Medium-high | Low | High |
| Recommended use | High wear, micro holes, long life | General duty, easy change | Dry stamping, sticky materials |
